EK2-EU

Smoke control damper EK2-EU

BVDAX for smoke extract in combination with a frequency inverter

BVDAX for smoke extract in combination with a frequency inverter, CE-certified according to EN12101-3 temperature category F400

For mechanical smoke extract systems and pressure differential systems

With TROXNETCOM as an option

CE certified in accordance with EN 12101-8

EK2-EU

For mechanical smoke extract systems and pressure differential systems as well as for providing additional supply air

Rectangular smoke control dampers with ventilation function for heat and smoke exhaust with mechanical smoke extract systems, for the provision of additional supply air and for use in pressure differential systems

CE-compliant smoke control damper according to EN 12101-8
Meets the maximum possible performance characteristics for smoke control dampers according to classification standard EN 13501-4
Use in load-bearing structures (solid and lightweight partition walls and ceiling slabs) to ensure fire integrity (fire compartmentation)
For the ducts and shafts of heat and smoke exhaust systems.
For pressure differential systems, mechanical smoke extract systems, gas extinguishing systems and for providing additional supply air
Control input signal from the fire alarm system and integration into the central BMS with TROXNETCOM
Remote signalling with open/close actuator and end position feedback
C_mod = for smoke extract and ventilation in combined systems, which allows for pneumatic volume flow rate balancing as the damper blade can take intermediate positions
Nominal sizes 200 × 200 – 1500 × 800 mm, for smoke gas flow rates up to 43200 m³/h or 12000 l/s at 10 m/s
Low pressure losses with high upstream velocities, standard value of 10 m/s and above
Automatic release (AA), option of manual override (MA)
Simple and quick dry mortarless installation in solid and lightweight partition walls possible

General information

Application

Smoke control damper, with CE marking and declaration of performance, for heat and smoke exhaust with mechanical smoke extract systems

Can be used for the provision of fresh air (additional supply air) to mechanical smoke extract systems

Can be used in pressure differential systems

Can be used for ventilation if the mechanical smoke extract system has been certified (general building inspectorate licence) for use with combined systems

Integration into the central BMS with TROXNETCOM

Special features

C_mod for smoke extract and ventilation in combined systems, which allows for pneumatic volume flow rate balancing as the damper blade can take intermediate positions

Complies with the requirements of EN 12101-8

Tested to EN 1366-2 and 1366-10 for fire resistance properties

Closed blade air leakage to EN 1751, Class 3, and casing leakage to EN 1751, Class C

Low sound power level and differential pressure

Any airflow direction

Manual release is also possible using TROXNETCOM

Integration into the central BMS with standard bus systems

Long-time testing to EN 1366-10, with 20000 open/close cycles for classification C_mod

Classification

EI 180/120/90 (v_edw-h_odw-i<->o) S 1500 C_modHOT 400/30 MA multi

Nominal sizes

Nominal size B × H: (in increments of 5 mm): 200 × 200 to 1500 × 800

Total length L:

L = 650 (or 750, for IC inspection access panel), to H = 380

L = 600 (IC inspection access panel possible), H = 380 – H = 545

L = 800 (IC inspection access panel possible), from H = 550

Parts and characteristics

Installation orientation is independent of the airflow direction

Pressure level 3 (operating pressure -1500 to 500 Pa)

Automatic (AA) or manual release (MA)

Smoke control damper with ventilation function

Attachment 1 (galvanised steel)

No entry required: None (standard)

1st character refers to the operating side (0, A, B, F)

2nd character refers to the installation side (0, A, B, F)

Any combination is possible

0 Side without attachment

Flat cover grille: A Crimped wire mesh 20 × 20

Flat cover grille: B Square perforated metal plate, 10 × 10

Connecting subframe, metal: F Connecting subframe, galvanised steel

Attachments 2

Open/close actuators, 24 V AC/DC or 230 V AC supply voltage

Network modules for the integration with AS-i networks

Network modules for other standard bus systems

Optional products

TROXNETCOM

X-FANS control unit for extract air and smoke extract control

TROX-X FANS smoke exhaust fans from the X-FANS subassembly

Smoke exhaust fan for roof installation BVDAX/BVD

Smoke exhaust fan for wall installation BVW/BVWAXN

Smoke exhaust centrifugal fan BVREH/BVRA

Smoke exhaust jet fans BVGAX/BVGAXN

All smoke exhaust fans are tested to EN 12101-3, for F200/F300/F400 and F600, depending on the type. A CE marking and declaration of performance are provided.

Speed adjustment for smoke exhaust fans

Certified frequency inverter unit X-FANS control

Safe and precise speed adjustment of smoke exhaust fans both in one-zone and in multi-zone systems.

Construction features

Rectangular construction

Reversible open/close actuator

Remote control with actuator

Suitable for the connection of cover grilles or connecting subframes

Materials and surfaces

Casing, damper blade and actuator encasing made of calcium silicate

Brass bearings

Stainless steel bearing axles and drive shaft

Standards and guidelines

Construction Products Regulation

EN 12101-8 Smoke and heat control systems – Smoke control dampers

EN 1366-10 Fire resistance tests for service installations – Smoke control dampers

EN 1366-2 Fire resistance tests for service installations – Fire dampers

EN 13501-4 Fire classification of construction products and building elements using data from fire resistance tests

EN 1751 Ventilation for buildings – Air terminal devices

Maintenance

Smoke control dampers must be operational at all times and must be maintained regularly so that they meet the performance requirements.

Maintenance is required at least every 6 months

A maintenance report must be created; documents must be kept for reference

The owner of the smoke extract system must arrange for a functional check of the smoke control damper every six months. This must be carried out taking the basic maintenance measures according to EN 13306 in conjunction with DIN 31051 into account. If 2 consecutive tests, one 6 months after the other, are successful, the next test on the fire damper can be conducted one year later.

Depending on where dampers are installed, country-specific regulations may apply.

For details on maintenance and inspection refer to the installation and operating manual.

Technische informatie

Funktion, Technical data, Quicksizing, Specification Text, Order code

Smoke control damper EK2-EU

① Casing
② Damper blade
③ Travel stop
④ Inspection access (optional)
⑤ Actuator encasing
⑥ Actuator
⑦ Cover of the actuator encasing (open)

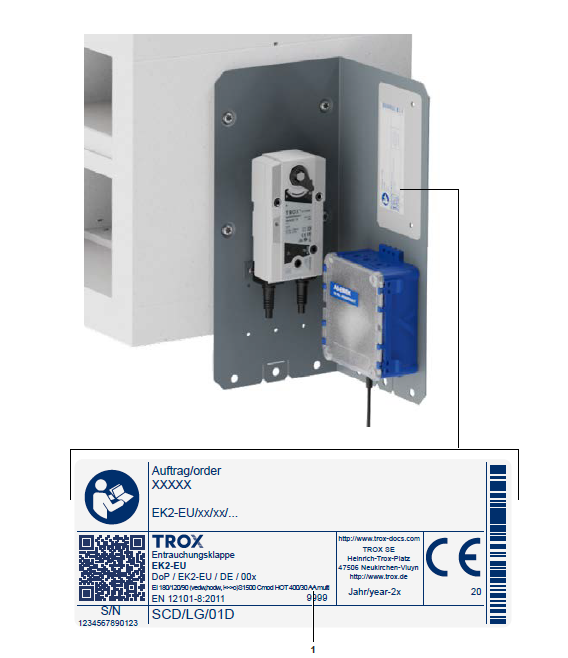

⑧ Rating plate

Smoke control dampers are used in mechanical smoke extract systems. They are used for extracting smoke gases and for providing additional supply air to one or more fire compartments. The dampers are made of calcium silicate panels and are opened by an encased actuator; when smoke is detected, the actuator is triggered by a signal either from a duct smoke detector or from a fire alarm system. Smoke control dampers have two safe positions: open and closed.

In the case of fire-resistant smoke control dampers for multiple compartments, the safe position is either "open" or "closed", depending on the fire site and the path of the smoke to be extracted. If the safe position is 'open', the free area must be maintained even in the event of a fire. The blade of EK2-EU moves to the defined safe position upon receiving an automatically or manually triggered control signal. According to the specified time-temperature curve, the EK2-EU can still fully open or close after 25 minutes (MA, manual release). Type EK2-EU smoke control dampers are also approved for modulation applications (Cmod) – the damper blade can take any intermediate position, which allows for pneumatic balancing._{Regular maintenance of the smoke control damper is required to ensure its functional reliability.}

Nominal sizes B × H	200 × 200 mm – 1500 × 800 mm
Volume flow rate range	Up to 12000 l/s or 43200 m³/h
Differential pressure range	Pressure level 3: -1500 – 500 Pa
Operating temperature	-30 – 50 °C without temperatures below the dew point
Upstream velocity*	≤ 10 m/s with the maximum dimensions >10 – 15 m/s with smaller dimensions, up to 43200 m³/h
Closed damper blade air leakage	EN 1751, at least Class 3
Casing leakage	EN 1751, Class C
EC conformity	EU Construction Products Regulation no. 305/2011 EN 12101-8 Smoke and heat control systems – Smoke control dampers EN 1366-10 Fire resistance tests for service installations – Smoke control dampers EN 1366-2 Fire resistance tests for service installations – Fire dampers EN 13501-4 Fire classification of construction products and building elements using data from fire resistance tests EN 1751 Ventilation for buildings – Air terminal devices
Declaration of performance	DoP/EK2-EU/001

* If actuation (change of damper blade position, moving away from the end position) is safely prevented even with an upstream velocity of more than 10 m/s, all sizes up to the maximum size can be used with an upstream velocity of 15 m/s.

Installation type A, in a duct

Ducted on both sides, any airflow direction

Installation type B, additional supply air

The installation types A, B and C lead to differences in the pressure loss values and must be taken into account in the sizing.
Precise values based on project-specific data can be determined with our Easy Product Finder design program.
You will find the Easy Product Finder on our website

Sizing example:

Sizing for smoke extract (installation type "C") based on given volume flow rate and limited installation opening

Volume flow rate: q_v ≥ 15000 m³/h
Maximum height of the opening: H (installation opening) = 1.2 m
Inspection access panel, wall connectors and cover grille in RAL 9022 requested
Determination of nominal height (H) EK2-EU: Wall opening (H = 1200 mm) - casing thickness (100 mm) - perimeter gap (top 50 mm, bottom 50 mm) = 1000 mm

Product selection
EK2-EU-MA-IC/DE/1000 × 600 × 800/01/B24/P1-RAL 9022

Results

q_v = 15120 m³/h (volume flow rate)
v = 7.0 m/s (airflow velocity based on the nominal size or upstream cross section)
Δp_t = 55 Pa (total pressure loss with cover grille, installation type "C")

Sizing for providing additional supply air (installation type "B") of 15000 m³ based on specified maximum upstream velocity of 3.5 m/s

Volume flow rate: q_v ≥ 15000 m³/h
Upstream velocity: v ≤ 3.5 m/s
Inspection access panel, wall connectors and cover grille in RAL 9022 requested

Product selection
EK2-EU-MA-IC/DE/1500 × 800 × 800/01/B24/P1-RAL 9022

Results

q_v = 15120 m³/h (volume flow rate)
v = 3.5 m/s (airflow velocity based on the nominal size or upstream cross section)
Δp_t = 14 Pa (total pressure loss with cover grille, installation type "B")

Rectangular or square smoke control dampers to product standard EN 12101-8, tested to EN 1366-10 and EN 1366-2, for use in smoke extract systems. Smoke control dampers not only prevent the spreading of smoke and combustion products between fire compartments, they also prevent the leakage of emitted, dangerous and poisonous fire suppression gases from the affected area, and they maintain positive pressure in pressure differential systems. The EK2-EU is suitable as a pressure relief damper for gas fire extinguishing systems. For extracting smoke gases and for providing additional supply air to one or more fire compartments. The EK2-EU can be used in smoke extract systems which have been approved for ventilation. The fire-resistant smoke control damper for multiple compartments is suitable for installation in solid walls and shafts, lightweight partition walls and ceiling slabs, as well as in and on fire-resistant smoke extract ducts. Open/Close actuator, with fully wired and ready-to-operate control module in a temperature resistant encasing as an option.

Equivalence criteria

Classification according to EI 180/120/90 (v_edw-h_odw-i<->o) S 1500 C_mod HOT 400/30 MA multi in wall and duct installation

Pressure level 3 (operating pressure from -1500 to 500 Pa)

Tested manual release (MA) including bus control module (allows for override by fire and rescue services)

For smoke extract ducts from 35 mm wall thickness

Adjoined damper installation (side by side or on top of each other)

Special features

Declaration of performance according to Construction Products Regulation

Classification according to EI 180/120/90 (v_edw-h_odw-i<->o) S 1500 C_mod HOT 400/30 MA multi

Complies with the requirements of EN 12101-8

Tested for fire resistance properties to DIN 1366-10 and EN 1366-2

Air leakage according to EN 1751, Class 3 and Class C

Low sound power level and differential pressure

Any airflow direction

Integration into the central BMS with TROXNETCOM

Tested to EN 1366-10 with a weight being attached to the blade, with 10000 open/close cycles and 10000 cycles in intermediate position (Cmod)

Materials and surfaces

Casing, damper blade and actuator encasing made of calcium silicate

Brass bearings

Stainless steel bearing axles and drive shaft

Life cycle assessment
A life cycle assessment is available for the product series in form of an Environmental Product Declaration (EPD) that has been checked and published by a programme holder.

EK2-EU

–

1500 × 800 × 800

B24A

1 TypeEK2-EU
Smoke control damper with one blade, to EN 12101-8

2 ConstructionEncasing:

MA Construction with encasing

3 Inspection access panel

No entry required: None (standard)
IC With two inspection access panels, depending on casing length L

4 CoatingNo entry required: None (standard)

C1 Promat SR impregnation on calcium silicate surfaces

5 Country of destinationDE Germany

CH Switzerland
AT Austria
NL Netherlands
and others

6 Nominal size B x H x total length L [mm] Nominal size B × H: (in increments of 5 mm)

of 200 × 200 – 1500 × 800Total length L:L = 650 (or 750, for construction IC with inspection access panel), to H = 380
L = 600 (IC inspection access panel possible) H = 385 to H = 545
L = 800 (IC inspection access panel possible) from H = 550

7 Accessories01 Fixing tabs (quantity depends on B x H)

02 Fibre paper (2 strips each of HT tape for dimension B and H)
03 Fixing tabs and fibre paper

8 Attachments 1 (galvanised steel)No entry required: None (standard)First character signifies operating side (0, A, B, F)

Second character signifies installation side (0, A, B, F)

Any combination is possible0 Side without attachmentFlat cover grille:

A Crimped wire mesh 20 × 20
B Square perforated metal plate, 10 × 10
Connecting subframe, metal:
F Connecting subframe, galvanised steel

9 Attachments 2 Belimo actuators

24 V AC/DC:
B24 BE 24-12-ST TR; BEE 24-ST TR, BEN 24-ST TR
230 V AC:
B230 BE 230-12 TR; BEE 230 TR, BEN 230 TR

Actuator + expansion: Fitted with encasings 1 + 2:

B24X BE 24-12-ST TR; BEE 24-ST TR, BEN 24-ST TR
B230X BE 230-12 TR; BEE 230 TR, BEN 230 TR

Ventilation function C_mod¹: Modulating actuator or auxiliary switch:

24 V AC/DC: with operating range DC 2...10 V, function C_mod¹
B24SR BEE 24 SR TR, BEN 24 SR TR (not with 40 Nm)
24 V AC/DC: With auxiliary switch for function C_mod¹
B24M BE 24-12-ST TR (24 V AC/DC) (only with 40 Nm)
230 V AC: With auxiliary switch for function C_mod¹
B230M BE 230-12 TR (230 V AC) (only with 40 Nm)

Actuator combined with control module Module for signalling, TROXNETCOM:

B24A BE24 + AS-EM/EK, 30 V DC (AS-i)²
B24AS BE24 + AS-EM/SIL2, 30 V DC (AS-i)²
B24AM BE24 + AS-EM/M, 30 V DC (AS-i)², for function C_mod¹

Other communication modules:

Belimo: Communication and power supply unit

B24BKNE BE24 + BKNE230-24
BV-Control: Communication and power supply unit with SLC®:
B24C BE24 + BC24 G2
Agnosys: BRM-10-F fire damper and smoke control damper module
B24D BE24 + BRM-10-F-ST
B230D BE230 + BRM-10-F

¹Function C_mod for damper blade in intermediate position

² The AS-i system is based on the industrial standard AS-Interface

10 Surface (Attachments 1)

No entry required: None (standard)

P1 Powder-coated, specify RAL CLASSIC colour

PS Powder-coated, DB colour …Gloss level:
RAL 9010 50 %
RAL 9006 30 %
All other RAL colours 70 %

Order example: EK2-EU/MA-IC-C1 /DE/1500x800×800/03 /A0/B24/P1-RAL9010-50%

1	Type	EK2-EU	Smoke control damper with one blade
2	Construction	MA	Construction with encasing
3	Coating	C1	Calcium silicate surfaces with Promat SR impregnation
4	Country of destination	DE	Germany
5	Nominal size	1500 × 800 × 800	B = 1500, H = 800, L = 800 [mm]
6	Accessories	03	Supply package including fixing tabs and fibre paper
7	Attachment 1	A0	Operating side: Flat cover grille with wire mesh, 20 x 20
8	Attachment 2	B24	Depending on nominal size, preselected 24 V actuator
9	Grille surfaces	P1-RAL9010 50 %	Cover grille with powder coating, RAL 9010, pure white

Dimensions, Product details

(1)	H	L	L₃	L₄
S	200 – 380	650 *	97	208
S	200 – 380	750 *	197	208
M	385 – 545	600	210	210
L	550 – 800	800	310	310

(1)	L	H	B
(1)	L	H	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
S	650	200	31	36	41	46	51	55	60	65	70	75	80	84	89	94
		250	33	39	44	49	54	59	64	69	74	79	84	89	94	99
		300	36	41	47	52	57	62	67	72	77	83	88	93	98	103
		380	38	44	49	55	60	65	71	76	81	86	92	97	102	108
M	600	400	39	44	49	55	60	65	70	75	81	86	91	96	101	107
		450	41	47	52	57	63	68	73	79	84	90	95	100	106	111
		500	44	49	55	60	66	71	77	82	88	93	99	104	110	116
		545	46	51	57	63	69	74	80	86	91	97	103	108	114	120
L	800	600	60	67	74	81	88	96	103	110	117	124	131	138	146	153
		650	63	70	77	85	92	99	107	114	121	129	136	143	150	158
		700	66	73	81	88	96	103	110	118	125	133	140	148	155	163
		750	69	76	84	91	99	107	114	122	130	137	145	153	160	168
		800	72	79	87	95	103	110	118	126	134	142	150	157	165	173

Installation and commissioning

Installation in concrete or masonry shaft walls
Installation in lightweight partition walls
Installation in or on tested, fire-resistant vertical or horizontal smoke extract ducts
Installation in fire-resistant REI 90 or EI 90 walls
For smoke extract ducts made of calcium silicate from 35 mm wall thickness
For sheet steel smoke extract ducts
After installation the damper must remain accessible for inspection, cleaning and repair
Connected smoke extract ducts must have an inspection access
Mechanical smoke extract systems require that the power supply is maintained even in the event of a fire

Note:
Smoke control dampers must be installed, connected and attached according to the operating and installation manual

Downloads

Productinformatie

Product data sheet EK2-EU

EK2-EU_PD_2023_07_13_DE_en Product data sheet 1,3 MB pdf

Broschures

Smoke extract - Stable. Flexible. Universal. EK2-EU

SF_2022_10_EK2-EU_DE_en_web Brochure 830 KB pdf

Certificaten

Declaration of performance EK2-EU

EK2-EU_DoP_001_2023_06_DE_en Declaration of performance 390 KB pdf
Environmental Product Declaration EK2-EU

EK2-EU_EPD_2024_03_DE_en Environmental Product Declarations 440 KB pdf
Zertifikat über statistische Leckageprüfungen

LC_v2_2024_10_DE_de Leckageprüfungen 650 KB pdf

Handleidingen

Installation and operating manual EK2-EU

EK2-EU_IOM_A00000085701_V1_2021_02_GB_en Installation and operating manual 2,6 MB pdf

Door op de knop te klikken stelt u ons in staat om u een uitstekende website-ervaring en een eenvoudig winkelproces te bieden. Deze cookies zijn noodzakelijk voor de werking van de website en voor de controle van onze diensten en applicaties, evenals degenen die uitsluitend worden gebruikt voor statistische doeleinden, voor gemaksinstellingen of om gepersonaliseerde inhoud weer te geven. U kunt beslissen welke categorieën u wilt toestaan en u kunt de instellingen voor datagebruik aanpassen op basis van uw individuele vereisten. Houd er rekening mee dat, afhankelijk van de instellingen die u heeft geselecteerd, mogelijk niet alle functionaliteiten van de pagina beschikbaar zijn. U kunt uw selectie op elk moment wijzigen.

TECHNISCH NOODZAKELIJK

Deze cookies zijn nodig voor het goed functioneren van onze website en kunnen niet worden uitgeschakeld. Deze cookies worden in de regel alleen ingesteld als reactie op door u ondernomen acties, zoals het instellen van uw privacyvoorkeuren of het vullen van de winkelwagen. Daarnaast zijn beveiligingsrelevante functionaliteiten of ondersteuning via een speciale webchat geïntegreerd, inclusief alle sessiecookies van TROX die worden ingesteld nadat u zich als klant hebt aangemeld. U kunt uw browser instellen om deze cookies te blokkeren of u hierover te informeren. Als gevolg hiervan werken sommige delen van de website mogelijk niet zoals bedoeld.

EK2-EU

For mechanical smoke extract systems and pressure differential systems as well as for providing additional supply air

General information

Technische informatie

Funktion, Technical data, Quicksizing, Specification Text, Order code

Dimensions, Product details

Downloads

Productinformatie

Product data sheet EK2-EU

Broschures

Smoke extract - Stable. Flexible. Universal. EK2-EU

Certificaten

Declaration of performance EK2-EU

Environmental Product Declaration EK2-EU

Zertifikat über statistische Leckageprüfungen

Handleidingen

Installation and operating manual EK2-EU

TECHNISCH NOODZAKELIJK

STATISTIEKEN EN WEBSITE-ANALYSE

GEMAK EN PERSONALISATIE

VOOR DE BESTE TROX-ERVARING
