TNC-EC-GP

System for controlling and monitoring motorised fire dampers

Stand-alone solution for controlling and monitoring up to 12 motorised fire dampers or up to 24 damper blade end positions

  • Easy electrical installation using coded plug connections
  • Pre-installed application software
  • No additional programming required
  • Improves the fire safety

Application

Application

  • Single PCB control for installation on a mounting rail
  • Stand-alone solution for controlling and monitoring of up to 6 motorised fire dampers with 24 V DC (up to 12 fire dampers with parallel operation); alternatively for capturing the end positions of up to 12 mechanical dampers with one limit switch (up to 24 limit switches with parallel operation)
  • With pre-installed user software, ready to use
  • Menu-driven operation using integral LCD and softkeys on the main PCB, signalling with LEDs
  • Topology: star-shaped with 4-wire line
  • Processing of a signal from the smoke detector or central fire alarm system (smoke detection, contamination of smoke detector)
  • Manual control (OPEN/CLOSE) of individual fire dampers
  • Automatic functional test

Technical information

  • Function
  • Specification text
  • Order code
TNC-EC-GP 00134286_0

Standard description (characteristics)

Single PCB control for controlling and monitoring of up to 6 motorised fire dampers with 24 V DC (up to 12 fire dampers with parallel operation); alternatively for capturing the end positions of up to 12 mechanical dampers with one limit switch (up to 24 limit switches with parallel operation)

  • With pre-installed user software
  • CAN bus interface for the connection of an external operating and display unit
  • Supply voltage: 24 V DC, –15 to 25 %
  • Power consumption: <150 mA (without external load)

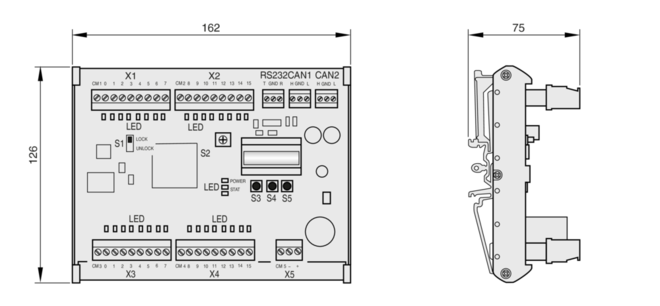

  • Dimensions: 162 × 126 × 75 mm (B × H × T)
  • Installation: on mounting rail
  • Make: TROX GmbH or equivalent
  • Type: TNC-EC-GP

00101783_0

 Type
TNC-EC       Decentralised operating and monitoring system



 Variant
Z00       Decentralised operating and monitoring system, in a casing
Z01       Decentralised operating and monitoring system, in a casing, with signal lamp
Z02       Decentralised operating and monitoring system, in a casing, with display module
Z03       Decentralised operating and monitoring system, in a casing, with signal lamp and display module
GP       Decentralised operating and monitoring system, main PCB only
AZM       Display module



TNC Easycontrol Commissioning

Downloads

product information

  • Product data sheet TNC-EASYCONTROL

    EASYCONTROL_PD_2021_11_05_DE_en Product data sheet 8,2 MB pdf
