10 A SWITCHING POWER SUPPLY UNIT, SUPPLYING VOLTAGE TO THE CONTROLLER OR TEXT DISPLAY

Controlled power supply for sensors, actuators, sensor electronics and controller

  • High efficiency of > 87 %
  • Input and output with overvoltage protection
  • Can be attached to a mounting rail, no tools required
  • Output voltage adjustable up to 28 V DC
  • Overload protection, up to 1.5 × nominal current
  • Very high efficiency, hence very low heat build-up
  • LED for secondary voltage indication

Application

Application

  • Switching power supply unit TNC-D2013 (24 V DC; 10 A)
  • Power supply for AS-i controllers and for operating and display units
  • Very high efficiency of 90 %
  • Low ripple, < 30 mV
  • High reliability

Technical information

  • Function
  • Technology
  • Specification text
  • Order code

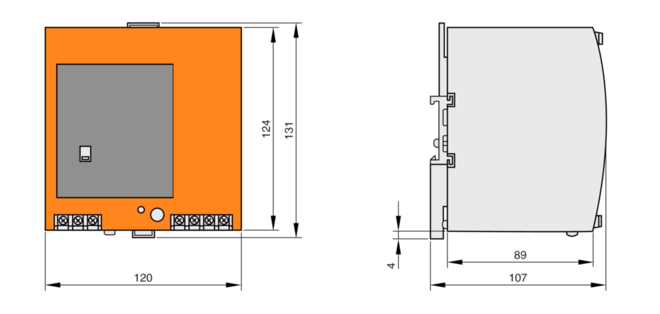

AS-i switching power supply unit TNC-D2013 00134214_0

DescriptionTNC-D2013
Output current10 A
Nominal voltage, primary115/230 V AC
Input voltage range85 – 132 V AC/176 – 264 V AC/240 – 375 V DC
Nominal frequency47 – 63 Hz
Efficiency90 %
CasingAluminium
Protection levelIP 20
IEC protection classI (protective earth)
ConnectionTerminals 1.5 – 6 mm²
Temperature range–10 to +60 °C
Derating12 W/K (60 – 70 °C)
Output voltage24 – 28 V DC (± 5 %/–1 %) to SELV/PELV
Power ON delay time< 20 ms
Residual ripple< 30 mV
Mains buffering time> 20 ms
Short-circuit protection / overload protectionYes
EMCEN 50081-1; EN 61000-6-2
MTTF195 years
Overvoltage protection29 V
LEDsGreen: output voltage


Standard description (characteristics)

Switching power supply unit TNC-D2013, supplying voltage to the controller or text display.

  • Nominal voltage: 115/230 AC V
  • Output voltage: 24 – 28 V DC (± 2 %), SELV/PELV
  • Output current: 10 A
  • Nominal frequency: 47 – 63 Hz
  • Efficiency: 90 %
  • Connection: Terminals, 1.5 to 6 mm²
  • Casing materials: Aluminium
  • Ambient temperature: –10 to +60 C°
  • Protection level: IP 20
  • Status display: LED green, output voltage
  • Make: TROX GmbH or equivalent
  • Type: TNC-D2013

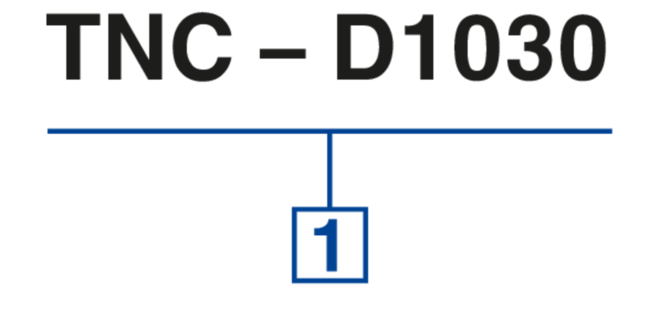

00131016_0


 Switching power supply unit
TNC-D1020 Output current 1.3 A
TNC-D2011 Output current 2.5 A
TNC-D2012 Output current 5 A
TNC-D2013 Output current 10 A
