5 A switching power supply unit, supplying voltage to the controller or text display

Controlled power supply for sensors, actuators, sensor electronics and controller

  • High efficiency of > 87 %
  • Input and output with overvoltage protection
  • Can be attached to a mounting rail, no tools required
  • Output voltage adjustable up to 28 V DC
  • Overload protection, up to 1.5 × nominal current
  • Very high efficiency, hence very low heat build-up
  • LED for secondary voltage indication

Application

Application

  • Switching power supply unit TNC-D2012 (24 V DC; 5 A)
  • Power supply for AS-i controllers and for operating and display units
  • Very high efficiency of 90 %
  • Low ripple, < 50 mV
  • High reliability

Technical information

  • Function
  • Technology
  • Specification text
  • Order code

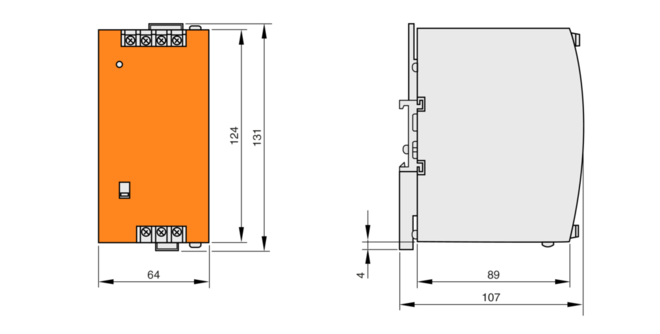

AS-i switching power supply unit TNC-D2012 00134209_0

DescriptionTNC-D2012
Output current5 A
Nominal voltage, primary115/230 V AC
Input voltage range85 – 132 V AC/176 – 264 V AC/210 – 375 V DC
Nominal frequency47 – 63 Hz
Efficiency90 %
CasingAluminium
Protection levelIP 20
IEC protection classI (protective earth)
ConnectionTerminals 1.5 – 6 mm²
Temperature range–10 to +60 °C
Derating3 W/K (60 – 70 °C)
Output voltage24 V DC (± 5 %/–1 %) to SELV/PELV
Power ON delay time< 20 ms
Residual ripple< 50 mV
Mains buffering time> 37 ms
Short-circuit protection / overload protectionYes (to IEC 61140)
EMCEN 50081-1; EN 61000-6-1; EN 61000-6-2; EN 61000-6-3; EN 61000-6-4
MTTF241 years
Overvoltage protection29 V
LEDsGreen: output voltage


Standard description (characteristics)

Switching power supply unit TNC-D2012, supplying voltage to the controller or text display.

  • Nominal voltage: 115/230 AC V
  • Output voltage: 24 V DC (+5 %/–1 %), SELV/PELV
  • Output current: 5 A
  • Nominal frequency: 47 – 63 Hz
  • Efficiency: 90 %
  • Connection: Terminals, 1.5 to 6 mm²
  • Casing materials: Aluminium
  • Ambient temperature: –10 to +60 C°
  • Protection level: IP 20
  • Status display: LED green, output voltage
  • Make: TROX GmbH or equivalent
  • Type: TNC-D2012

00131016_0


 Switching power supply unit
TNC-D1020 Output current 1.3 A
TNC-D2011 Output current 2.5 A
TNC-D2012 Output current 5 A
TNC-D2013 Output current 10 A



Downloads

product information

  • TROXNETCOM AS-i Switching power supply units

    K 4 – 6.2 – 28 Technical Leaflet 570 KB pdf
