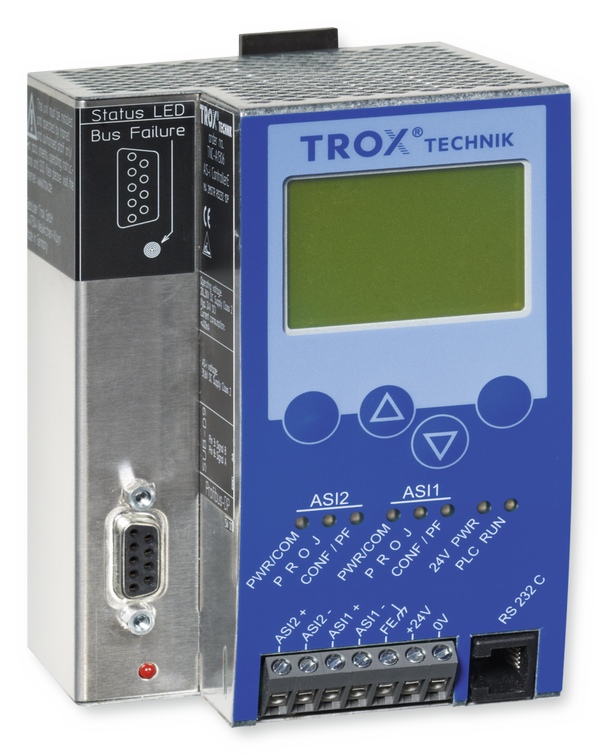

AS-i controller with 2 masters is a compact AS-i master system with integral text/graphic display and PROFIBUS DP interface.

Controller for controlling actuators and for monitoring the damper blade position and duct smoke detectors

  • Controller with TROXNETCOM Basic User Software
  • Easy and safe commissioning without programming
  • Controller with master function for stand-alone operation
  • System monitoring
  • Automatic recognition of components and their status
  • Menu-driven user interface (controller display) for system configuration
  • Peripheral equipment can be tested without additional auxiliary equipment

Application

Application

  • AS-i controller TNC-A1306 with 2 masters for 62 AS-i slaves
  • Decentralised operating and monitoring system with signal preprocessing and gateway
  • With TNC Basic User Software
  • Recognition of all slaves on a bus
  • For initialising the AS interface network
  • Error diagnosis and signalling
  • LC display, 43 × 28 mm, also for operation
  • PROFIBUS DP interface

Technical information

  • Function
  • Technology
  • Specification text
  • Order code

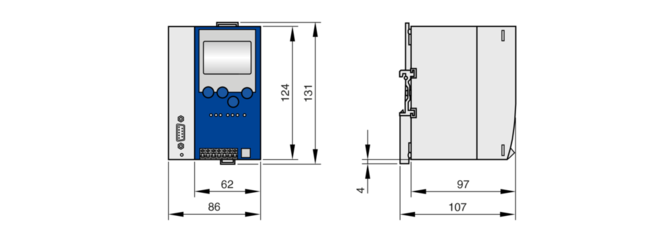

AS-i controller TNC-A1306 00132277_0


DescriptionTNC-A1306
Supply voltage24 V DC
Current consumption< 500 mA
Power consumption< 10 VA
Programming interfaceRS232C: RJ11; 9600 – 115200 Bd, galvanically isolated
Data interfacePROFIBUS DP (EN 50170); max. 12 MBd slave
Diagnosis via PROFIBUS DPYes
PLC memory for user program128 Kwords
DisplayGraphic LC display 128 × 64 pixels, 43 × 28 mm
Max. acceptable rel. humidity< 95 %
Status LED3 × red; 3 x green; 3 × yellow
Ambient temperature0 to 60 °C
Storage temperature–20 to 70 °C
Protection levelIP 20
MTTF5.19 years
AS-i profileM3
AS-i certificate61104
Casing materialsAluminium, galvanised sheet steel
Casing dimensions124 × 97 × 86 mm
FixingOn DIN mounting rail


Standard description (characteristics)

AS-i controller TNC-A1306 (2 masters) is a compact AS-i master system with integral text/graphic display and PROFIBUS DP interface.

  • Control of components as part of fire damper control

Integral TNC Basic User Software with the following functions:

  • Automatic recognition of TROX modules and their functions
  • Automatic grouping
  • Network control
  • Automatic functional test
  • Manual control of dampers
  • Integral display, also for operation
  • Simple, menu-driven configuration and adjustment

  • Supply voltage: 24 V DC
  • Total current consumption from AS-i: < 10 mA
  • Casing materials: Aluminium, galvanised sheet steel
  • Ambient temperature: 0 – 60 C°
  • Protection level: IP 20
  • Status display: LEDs, 3 x red, 3 x green, 3 x yellow
  • Make: TROX GmbH or equivalent
  • Type: TNC-A1306

00131013_0


 Component
TNC-A1305       Controller with PROFIBUS DP interface; 1 master
TNC-A1306       Controller with PROFIBUS DP interface; 2 masters
TNC-A1353       Controller with Modbus/TCP interface; 1 master
TNC-A1354       Controller with Modbus/TCP interface; 2 masters
TNC-A1375       Gateway with PROFIBUS DP interface; 1 master
TNC-A2225       Repeater
TNC-ZB0252       AS-i safety gateway
TNC-Z0119       Passive bus termination
TNC-A1146       AS-i tuner (diagnosis module)



Downloads

product information

  • TROXNETCOM AS-i Controllers and repeaters

    K 4 – 6.2 – 1 Technical Leaflet 720 KB pdf

TROX Services
