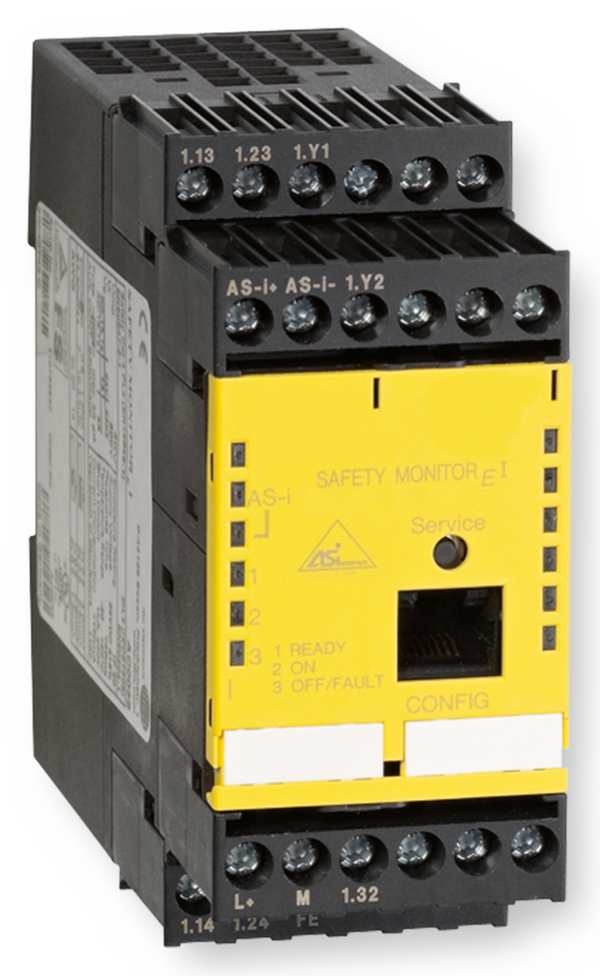

Safety monitor for monitoring data transmission and the AS-i controller, for safety related applications up to SIL 3 to IEC/EN 61508, e.g. for the control of up to 4  smoke control dampers

Controller for controlling actuators and for monitoring the damper blade position and duct smoke detectors

  • Controller with TROXNETCOM Basic User Software
  • Easy and safe commissioning without programming
  • Controller with master function for stand-alone operation
  • System monitoring
  • Automatic recognition of components and their status
  • Menu-driven user interface (controller display) for system configuration
  • Peripheral equipment can be tested without additional auxiliary equipment

Application

Application

  • AS-i safety monitor TNC-A003S
  • Safety monitor for monitoring data transmission and the AS-i controller, for safety related applications up to SIL 3 to IEC/EN 61508, e.g. for the control of smoke control dampers

Technical information

  • Function
  • Technology
  • Specification text
  • Order code
AS-i safety monitor TNC-A003S 00134177_0

DescriptionTNC-A003S
Supply voltage24 V DC ± 15 %
Residual ripple< 15 %
Rated operating current150 mA
Peak switch-on current ¹⁾600 mA
Response time (safety related)< 40 ms
Power ON delay time< 10 s
AS-i profileMonitor 7.F
AS-i voltage range18.5 – 31.6 V
AS-i current consumption< 45 mA
Interface RS 2329600 Bd, no parity, 1 start bit, 1 stop bit, 8 data bits
Start inputOptocoupler input (high active), input current approx. 10 mA (24 V DC)
Contactor control inputOptocoupler input (high active), input current approx. 10 mA (24 V DC)
Safety ON message output ²⁾PNP transistor output, 200 mA, short circuit and reverse voltage protection
Safety outputVolt-free NO contacts, max. contact load: 1 A DC-13 at 24 V DC, 3 A AC-15 at 230 V AC
FuseExternally, with 4 A MT max.
Overvoltage category3, for rated operating voltage 300 V AC to VDE 0110 part 1
Operating temperature–20 to 60 °C
Storage temperature–30 to 70 °C
Protection levelIP 20 (only for use in rooms where electric systems operate/switch cabinet with minimum IP 54)
MTTFd57 years
Distance between 2 AS-i safety monitors10 mm
Casing dimensions45 × 105 × 120 mm
Casing materialPolyamide PA66, black
FixingOn DIN mounting rail

¹⁾ When all relays are switched on simultaneously; current for message outputs not taken into consideration

²⁾ The Safety ON message output is not safety related


Standard description (characteristics)

Safety monitor for monitoring data transmission and the AS-i controller, for safety related applications up to SIL 3 to IEC/EN 61508, e.g. for the control of up to 4  smoke control dampers

  • Supply voltage: 24 V DC ±15 %
  • AS-i voltage range: 18.5 – 31.6 V
  • AS-i current consumption: < 45 mA
  • Operating temperature: –20 to 60 C°
  • Protection level: IP 20 (only for use in rooms where electric systems operate/switch cabinet with minimum IP54)
  • Make: TROX GmbH or equivalent
  • Type: TNC-A003S

00131013_0


 Component
TNC-A1305       Controller with PROFIBUS DP interface; 1 master
TNC-A1306       Controller with PROFIBUS DP interface; 2 masters
TNC-A1353       Controller with Modbus/TCP interface; 1 master
TNC-A1354       Controller with Modbus/TCP interface; 2 masters
TNC-A1375       Gateway with PROFIBUS DP interface; 1 master
TNC-A2225       Repeater
TNC-ZB0252       AS-i safety gateway
TNC-Z0119       Passive bus termination
TNC-A1146       AS-i tuner (diagnosis module)



Downloads

product information

  • TROXNETCOM AS-i Controllers and repeaters

    K 4 – 6.2 – 1 Technical Leaflet 720 KB pdf
