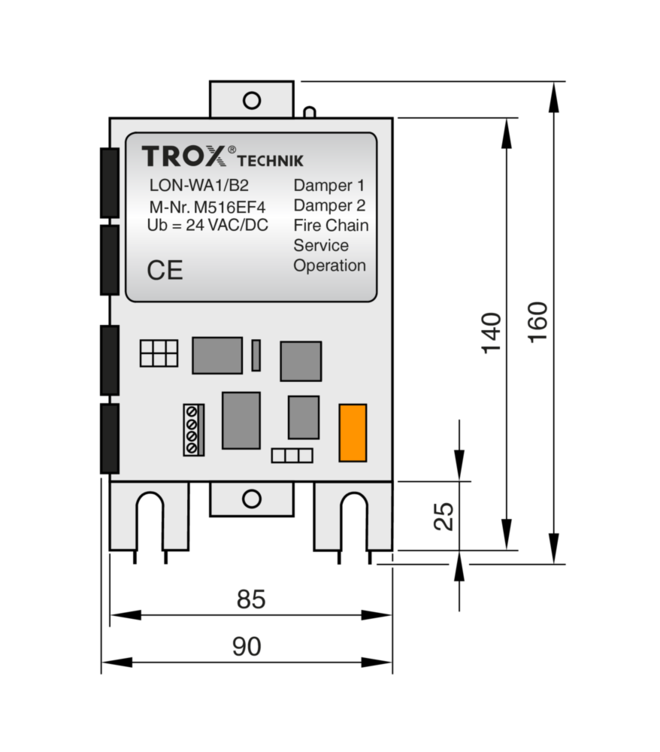

LON-WA1/B2

Functional description

LON-WA1/B2 can be used to control two fire dampers.

A second fire damper is connected with LON-WA1/B2-AD or LON-WA1/B2-AD230.

If only one fire damper is connected, the 8-pole terminal block for the connection of the second fire damper must have a wire link between terminals 5 and 6 (end position OPEN). This is to prevent an alarm for the second, missing fire damper.

Input variable ActuDrive is used to control the fire damper.

Output variable ActuPosn is used to signal the current damper blade position.

The following applies:

• Normal = Fire damper is OPEN
• Fire = Fire damper is CLOSED

When LON-WA1/B2 is supplied with voltage, the connected dampers move into their respective normal position.

Pressing the Test button moves the dampers to the Fire position, and after the OffTime + 10 s back into the Normal position..

In case of an error, VDMA sheet 24200-1 (Automated fire protection and smoke extract systems) applies:

Safe positions

• Fire damper = CLOSED

If LON-WA1/B2 is used, the heartbeat function should be activated (for safety reasons).

Setting parameter MaxRcvTime for variable ActuDrive, and parameter MaxSendTime for variable ActuPosn, ensures that all LON-WA1/B2 modules regularly send and receive information. This ensures that the transmission path is being monitored.

In case of an error, the damper moves to a safe position, and an alarm is emitted.

Input variable FT_Test can be used to initiate a functional test of the damper. The dampers are then moved to the 'Fire Position'. The output variable FT_Test indicates whether a test is being carried out.

The module remains in the text condition for the entire TestHoldTime. The damper remains in the 'Fire Position' until a new command is issued using ActuDrive. If ActuDrive switches to 'Fire' during a test, the test is automatically aborted.

If there is a chain of modules (and hence fire dampers), the FireChain variables can transmit a signal from the first to the last but will not release a damper. The FireChain relay in the LON-WA1/B2 module receives a signal and can be used for consolidated alarms or to switch off systems.

The Pulse variables are used to check a LON network.

If the input variable is set, the LON-WA1/B2 module will change the output variable after 1 second. If there is a chain of modules, a trigger pulse is generated which can be read out at the end of the chain after N × 1 seconds (N = number of LON-WA1/B2 modules).
