00134607_0

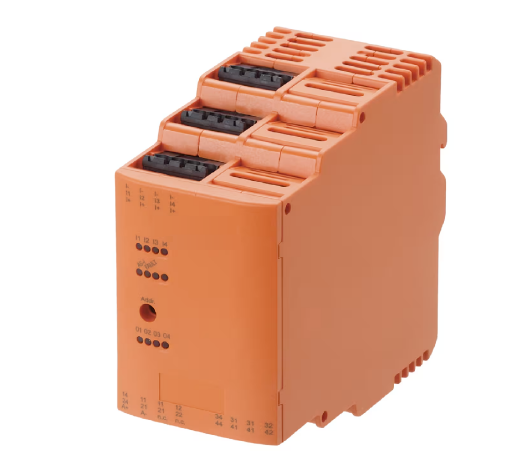

TNC-Z0094
00134607_0

TNC-Z0094

Relay module with 4 digital inputs and outputs; several modules can be installed in a row

The module is used to connect the control system with the components

  • Integral AS-Interface slave
  • Monitoring of signal receipt
  • With short circuit protection
  • Easy wiring due to flat cable insulation displacement connectors ('click and go')
  • Certified motor control modules for safe communication up to SIL2
  • Special modules for dampers with special functions including redundant voltage supply
  • Universal module for the connection of various terminal units such as fire dampers, smoke protection dampers or duct smoke detectors

Application

Application

  • Module with 4 digital inputs and outputs
  • Outputs with relays, galvanically isolated
  • Integral AS-Interface slave
  • Monitoring of signal receipt
  • Providing a watchdog function for digital outputs
  • Connection to AS-i network with Combicon connector with screw terminal
  • Supply voltage to the module through the AS interface

Technical information

  • Function
  • Technology
  • Specification text
  • Order code
AS-i module TNC-Z0094 00134257_0

DescriptionTNC-Z0094
Electrical design4 inputs/4 outputs
Output functionRelay
Supply voltage26.5 – 31.6 V DC
Current consumption< 250 mA
Inputs
SwitchingPNP
Sensor voltage supplyAS-i
Voltage range16 – 30 V DC
Max. current load (total for all inputs)200 mA
With short circuit protectionYes
Switching level – high signal 1> 11 V
Input current high/low> 6/< 2 mA
Outputs
Galvanically isolatedYes
Voltage range10 – 240 V AC/24 V DC
Max. current load per output6000 mA
Status display
OperationLED green
FunctionLED yellow
Error displayLED red
Ambient temperature–25 to 60 °C
Protection levelIP 20
IEC protection class
AS-i profileS 7.0.E
I/O configuration7 Hex
ID code0.E Hex
EMCEN 50295; EN 50178
MTTF305 years
Casing materialsPA 6.6
Dimensions L × B × H105 × 50 × 114 mm
ConnectionScrew terminals


Standard description (characteristics)

  • Module with 4 digital inputs and outputs; several modules can be installed in a row
  • Installation with screw terminals on a rail or on the rear wall of a switch cabinet
  • Total current consumption from AS-i: < 250 mA
  • Ambient temperature: –25 to 60 °C
  • Protection level: IP20
  • Make: TROX GmbH or equivalent
  • Type: TNC-Z0094

00135241_0


 Module
AS-EPR       Module for the connection of four limit switches
AS-EM       Module for controlling an actuator
AS-EM/EK       Module for controlling actuators on smoke control dampers
AS-EM/SO       Module for controlling actuators with special functions
AS-EM/SIL2       Module for controlling actuators with SIL2 certificate
AS-EM/C       Module for universal control functions, 2 outputs, 4 inputs
TNC-A005S       AS-i safety input module
TNC-Z0094       Relay module 4E/4A
TNC-Z0047       Illuminated push button module



Downloads

product information

operation manuals

  • System manual TROXNETCOM AS-i System manual version 3.0

    AS-i_SH_2021_11_A00000079151_V3_GB_en System manual  13 MB pdf
