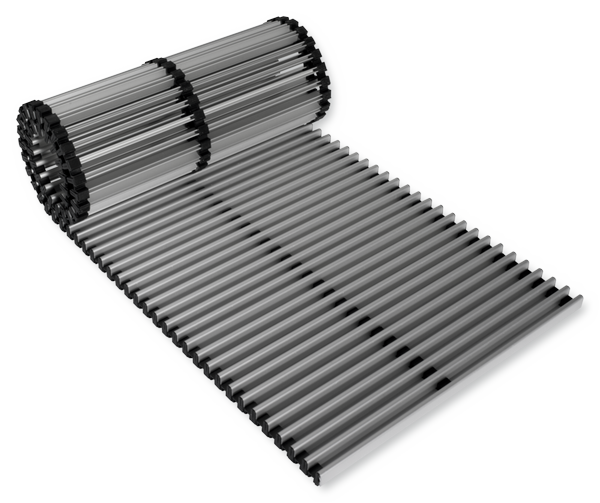

Roll down grilles, made of aluminium, with fixed transverse blades, for floor installation

Roll down grilles with rounded blade edges, for covering floor voids such as trenches for heating, underfloor induction units, decentralised ventilation units, light wells and similar

Nominal width: 150, 200, 250, 300, 350, 400, 450 mm
Grille height 15 or 20 mm
Fixed transverse blades made of aluminium
Cut sections and rolls to be cut to length
Good impact sound insulation, quiet to walk on and non slip due to rubber underside
Cut edges of blades are covered

Application

Application

Type ARR roll down grilles as supply air or extract air variant for comfort zones and industrial zones
Suitable also for entrance areas and other high traffic areas
Directed supply air discharge for mixed flow ventilation
For variable and constant volume flows
For supply air to room air temperature differences from –12 to +4 K
For floor installation
For covering trenches for heating, underfloor induction units, decentralised ventilation units or light wells and as overflow grating surrounding swimming pools

Special characteristics

Fixed blades
High-quality design
Good impact sound insulation, quiet to walk on and non slip
High thermal, chemical and mechanical resistance, tested to DIN

Nominal sizes

Cut sections, L: 150 – 3000 mm, in 1 mm increments
R: 1 roll of 10 m; for ARR-20, width 400 and 450 comes in 2 rolls of 5 m each
B: 150, 200, 250, 300, 350, 400, 450 mm

Description

Variants

15: Grille height 15 mm
20: Grille height 20 mm

Parts and characteristics

Transverse blades with rounded upper edges
Connecting strip, covering the cut edges of each blade, with integral distance pieces
Rubber underside ensures optimum sound impact insulation and non slip characteristic
Special tool for cutting to length
Stabilising strip from B = 300 mm

Construction features

Rigid fitting of the blades on the connecting strip
Blades rest on the connecting strip (no frame), 8 mm wide support area
Easy handling
Quiet and safe to walk on
Individual blades can be replaced

Materials and surfaces

Blades made of aluminium
Connecting strip made of plastic, UL 94, V-0, flame retardant
Rubber underside
Anodised blades, E6-C-0, natural colour

Standards and guidelines

Sound power level of the air-regenerated noise measured according to EN ISO 5135

Maintenance

Maintenance-free as construction and materials are not subject to wear
Inspection and cleaning to VDI 6022

Technical information

Schematic illustration of ARR 00173387_0

① Blade
② Blade removed
③ Connecting strip
④ Anti-vibration element
⑤ Special tool

Nominal widths	150, 200, 250, 300, 350, 400, 450 mm
Supply air to room air temperature difference	–12 to +4 K

Roll down grilles, rectangular, made of aluminium, for supply and extract air. For covering trenches for heating, underfloor induction units, decentralised ventilation units, light wells, overflow grating surrounding swimming pools and similar openings.

Ready-to-install component which consists of fixed transverse blades resting on two connecting strips with anti-vibration elements, available as a roll or as cut sections. Rolls come with a special tool for cutting to length. The covering of the blade cut edges prevents injuries and ensures that the grille is both quiet to walk on and flexible enough to be removed. Replacement of individual blades is possible.

Non slip characteristic and good optimum sound impact insulation due to rubber underside.

Special characteristics

Fixed blades
High-quality design
Good impact sound insulation, quiet to walk on and non slip
High thermal, chemical and mechanical resistance, tested to DIN

Materials and surfaces

Blades made of aluminium
Connecting strip made of plastic, UL 94, V-0, flame retardant
Rubber underside
Anodised blades, E6-C-0, natural colour

Technical data

Nominal width: 150, 200, 250, 300, 350, 400, 450 mm
Supply air to room air temperature difference: –12 to +4 K

Type
ARR Roll down grille

Grille height [mm]
15
20

Nominal length
R       Roll (10 m)
       ARR-20, widths 400 and 450 mm come in 2 rolls of 5 m each
L       Cut section (150 – 3000 mm)

Nominal width [mm]
150
200
250
300
350
400
450

Downloads

product information

Type ARR

K1 – 3.2 – 1 Technical Leaflet 2,7 MB pdf
